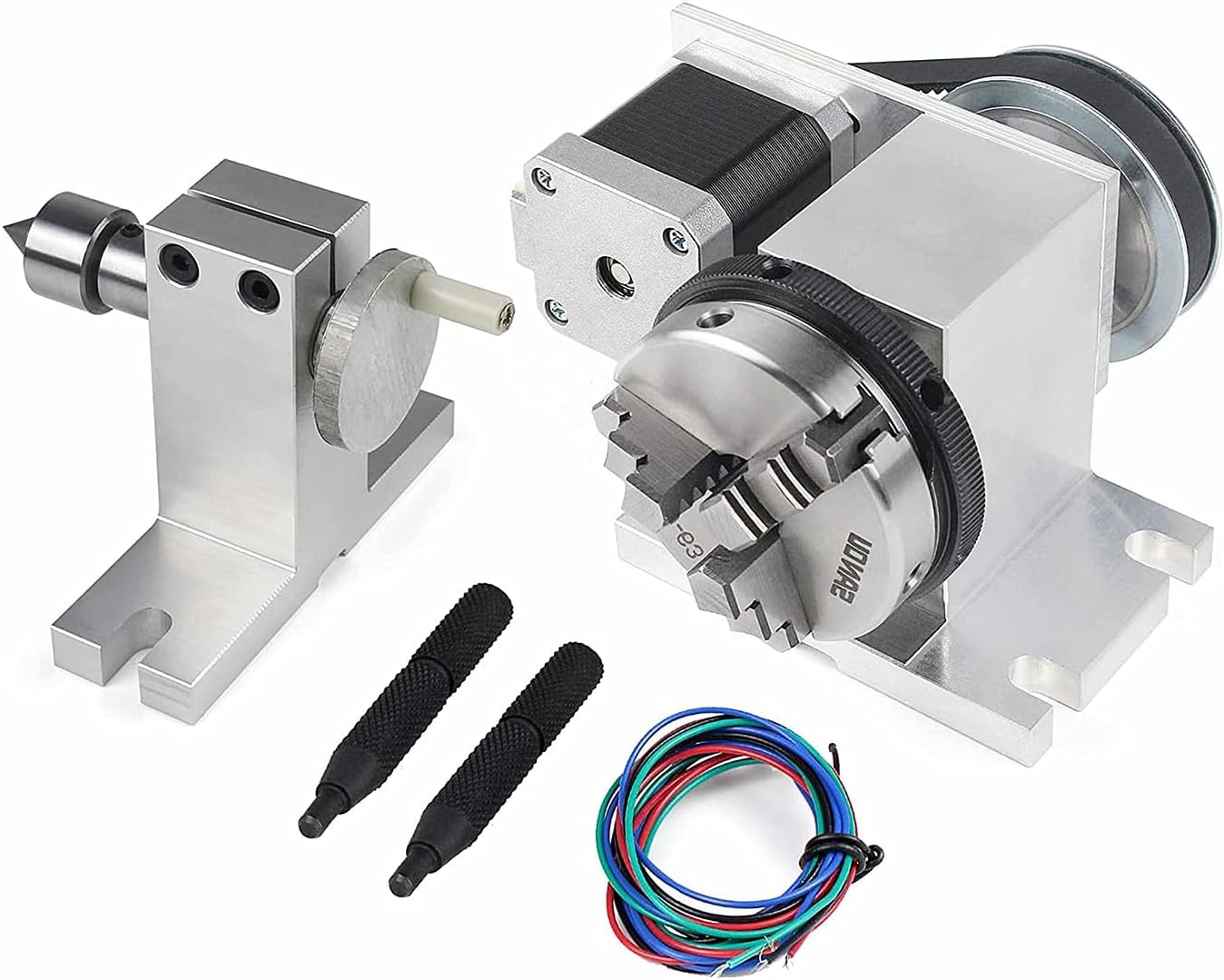

CNC Milling Machine Rotational Axis CNC Router Rotary Table Rotary a axis 4th Axis 65mm 3 Jaw Chuck Dividing Head w/ Nema17 stepper motor w/ 54mm Tailstock Reducing ratio 4:1 for CNC Engraving Machine
Details
- BrandCNCTOPBAOS
- Item Diameter63 Millimeters
- Item Weight2.42 Kilograms
- Compatible DevicesMilling
- Thread Size1/2-20 UNC
Description
⚙️ Elevate your CNC game with precision and power – don’t get left behind!
- ROBUST GRIP - 63mm three-jaw chuck clamps 1-50mm workpieces with 0.05mm centering accuracy
- BUILT TO LAST - Rust-proof anodized finish and dust cover ensure durability in demanding CNC environments
- POWERFUL MOTION - Nema17 stepper motor delivers 64oz-in torque for reliable, consistent rotation
- PRECISION PERFECTED - 0.3° step angle for ultra-smooth rotational control
- VERSATILE TAILSTOCK - 54mm center height with 30mm telescopic stroke for stable multi-axis machining
The K11-65mm CNC 4th Axis Rotary Table combines a high-precision 4:1 gear reduction with a robust 63mm three-jaw chuck and a powerful Nema17 stepper motor. Designed for CNC routers, milling, and engraving machines, it offers exceptional centering accuracy (0.05mm), stable tailstock support, and a rust-resistant anodized finish, making it an essential upgrade for professional-grade multi-axis machining.
Specifications
| Capacity | 63 Millimeters |
| Handle Type | hand-tightened |
| Included Components | Rotary axis 4th axis, 3 jaw chuck, Nema17 stepper motor, 54mm Tailstock |
| Lock Type | Manual (keyless) |
| Manufacturer | Changzhou Rattm Motor Co.,Ltd |
| UPC | 681385631142 |
| Part Number | S23 |
| Item Weight | 5.33 pounds |
| Package Dimensions | 11.93 x 7.64 x 5.91 inches |
| Item model number | K11-65 |
| Is Discontinued By Manufacturer | No |
| Size | 65mm |
| Style | K11-65MM |
| Item Package Quantity | 1 |
| Cutting Diameter | 63 Millimeters |
| Batteries Included? | No |
| Batteries Required? | No |
Have a Question? See What Others Asked
Reviews
N**K
This thing has no business being as nice as it is for $255.
Every once in a while China really outdoes themselves. This is one of those times.This thing is simple, clean and accurate. Now, honestly, there isn't too much to these, but this little package for $250 is a great deal.I found a random $20 controller to go with this and it works great. Spins plenty fast, even with the 6:1 reduction.Mating it to my Tormach took some work, but in the end, operates perfectly. Tormach is not expecting a 4th axis with a 6:1 reduction ratio, so none of the micropulse pin settings on the stepper driver generate a proper 360 degree turn when commanding a 360 degree move.You have to go into an .inc file on the controller and change the 4th axis SCALE. Then, if you want it to turn faster, you have to change some speeds, also in the .ini files. It's all on the LinuxCNC forum. But very easy to do and saves $3000 versus a MicroARC.Highly recommended.
J**
A
Bien
C**P
Tailstock bearing damaged (UPDATED very good customer service)
Just received the package. I noticed that the ball bearing that holds the tip of the tailstock is blocked or damaged,I was able to lose it with WD40 but still, it has a lot of friction. There is no instruction or information on how to fix this.Customer service helped me to solve the issue and I am pleased with the results. Four stars due to the initial issue
M**.
Best 4th axis for home CNC
Very nice unit. I could not find any backlash or any play. Got it in just two days. It worked right out of the box. Price is better that Ebay. I'm going to use 2" aluminum blocks under the unit to turn pieces up to 9" diameter, without them you can do 5" diameter. K11-100mm CNC Router Engraving Machine Rotational A 4th Axis 100mm 3 Jaw Chuck+65mm Tailstock (Reducing ratio:6:1)
D**R
Overall ok
is ok, not bad. have to drill more holes in the base plate, the ones provided are trash for my table, but maybe not your table.
D**S
This will save so much time!
I aleays disliked having to change tools. This is definitely worth the purchase. Price is amazing and from what i can tell really good quality!
J**O
tal cual lo esperaba
llego muy rapido. no lo he instalado aun pero se ve muy bien.
W**G
arrived as promised
The unit arrived in a solid box, looks good. It's gonna take a while to get this installed and working.
