The pinout for the SCNM9FF2MBK is the following: 1-1 2-3 3-2 4-6 5-5 6-4 7-8 8-7 9-9 Shell-Shell Malcolm, StarTech.com Support

Deliver to Thailand

For best experience Get the App

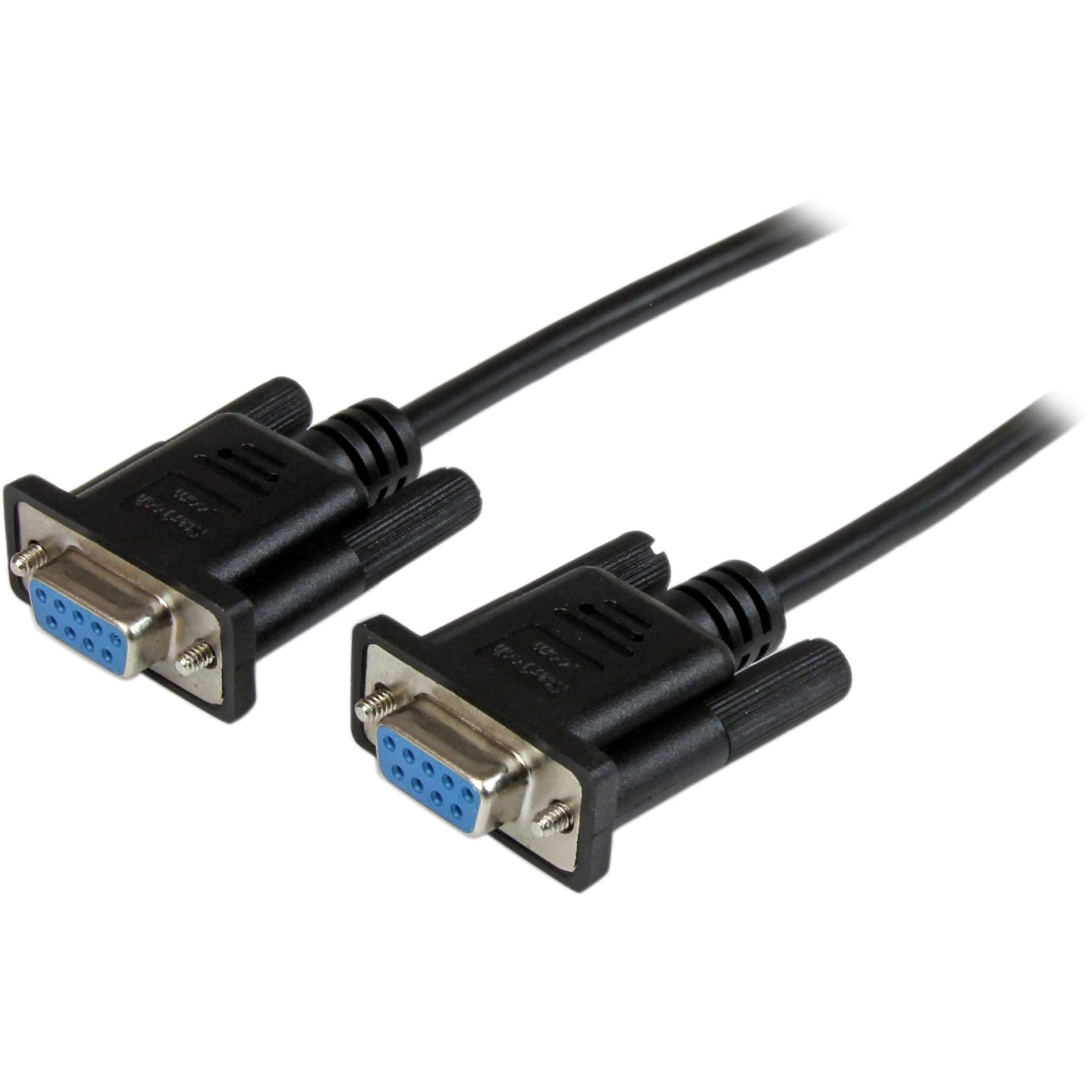

StarTech.com 2m Black DB9 RS232 Serial Null Modem Cable F/F - DB9 Female to Female - 9 pin RS232 Null Modem Cable - 2 meter, Black (SCNM9FF2MBK)

StarTech.com 2m Black DB9 RS232 Serial Null Modem Cable F/F - DB9 Female to Female - 9 pin RS232 Null Modem Cable - 2 meter, Black (SCNM9FF2MBK)

Q: Bought this cable to communicate between to systems. It worked for about 20 minutes then stopped completely. Is this due to not having full handshake?

That’s going to be hard to figure out. There are two similar cables. One a straight through and the other is a reverse. If you have an Ohm meter then I would check the pin out to see if you have a break in the cable. Since there are no electrical components involved I would be inclined to suspect a solfware setting issue. So if the cable hasn’t been damaged then I would check the solftware angle first. The other issue is that you may have the wrong cable but if it was working before then software is my best guess. Null modem cable has the transmit and receive pins are cross linked. So check out your cable, they look the same, one cross linked and one straight-through.

Q: What is the wire diagram of these cables

I do not know, nor do I know how easy it could be explained here. You can google 'RS232 Serial Null cable' and get pictures and schematics of them, but even then it is confusing as none I saw seemed complete. The best way to check it, to be certain, would be to check each pin with your Ohm meter, and make a diagram that you are certain is correct for your specific cable. Sorry I wasn't more help. The application for which I needed the cable had specified this type, and it worked for me.

Q: What is the gage of the conductor wire?

The SCNM9FF2MBK has a 28 AWG. Atha, StarTech.com Support

Product ID: 269628098

Secure Transaction

Details

Brand
StarTech
Connector type
Serial
Cable type
Serial
Compatible devices
Modem PC
Special features
Tangle Free

⚡High quality shielding

📡9 pin connectivity

🔌2m length

Frequently Bought Together

StarTech.com 2m Black DB9 RS232 Serial Null Modem Cable F/F - DB9 Female to Female - 9 pin RS232 Null Modem Cable - 2 meter, Black (SCNM9FF2MBK)

SABRENT USB 2.0 to Serial (9 Pin) DB 9 RS 232 Converter Cable, Prolific Chipset, HEXNUTS, [Windows 11/10/8.1/8/7/VISTA/XP, Mac OS X 10.6 and Above] 2.5 Feet (CB-DB9P)

StarTech.com 10' RS232 Serial Null Modem Cable - Null modem cable - DB-9 (F) to DB-9 (F) - 10 ft (SCNM9FF)

Description

🔗 Connect with Confidence!

DURABLE DESIGN - Built to last with robust materials for reliable performance.
SEAMLESS CONNECTIVITY - Easily connect your serial devices with this 2m DB9 Female to Female cable.
PROFESSIONAL AESTHETIC - Sleek black design complements any workspace setup.
VERSATILE COMPATIBILITY - Perfect for a variety of devices requiring RS232 connections.
INTERFERENCE FREE TRANSFERS - High-quality shielding ensures your data transfers are free from EMI interference.

The StarTechcom 2m Black DB9 RS232 Serial Null Modem Cable is a high-quality, reliable solution for connecting serial devices. With its 2-meter length and female-to-female configuration, this cable ensures seamless data transfer while preventing EMI interference, making it ideal for professional environments.

Specifications

Number of Items	1
Item Weight	0.11 Kilograms
Unit Count	1.0 Count
Shape	Round
Color	Black
Indoor Outdoor Usage	Outdoor, Indoor
Recommended Uses For Product	data transfer
Data Transfer Rate	6.6 Gigabits Per Second
Number of Pins	9
Connectivity Technology	Serial
Gauge	28.0
Additional Features	Data Transfer
Connector Gender	Female-to-Female
Connector Type Used on Cable	Serial
Cable Type	Serial
Compatible Devices	PC, Modem
Outer Material	Polyvinyl Chloride (PVC)

Have a Question? See What Others Asked

What is the pin out?

Bought this cable to communicate between to systems. It worked for about 20 minutes then stopped completely. Is this due to not having full handshake?

What is the wire diagram of these cables

What is the gage of the conductor wire?
