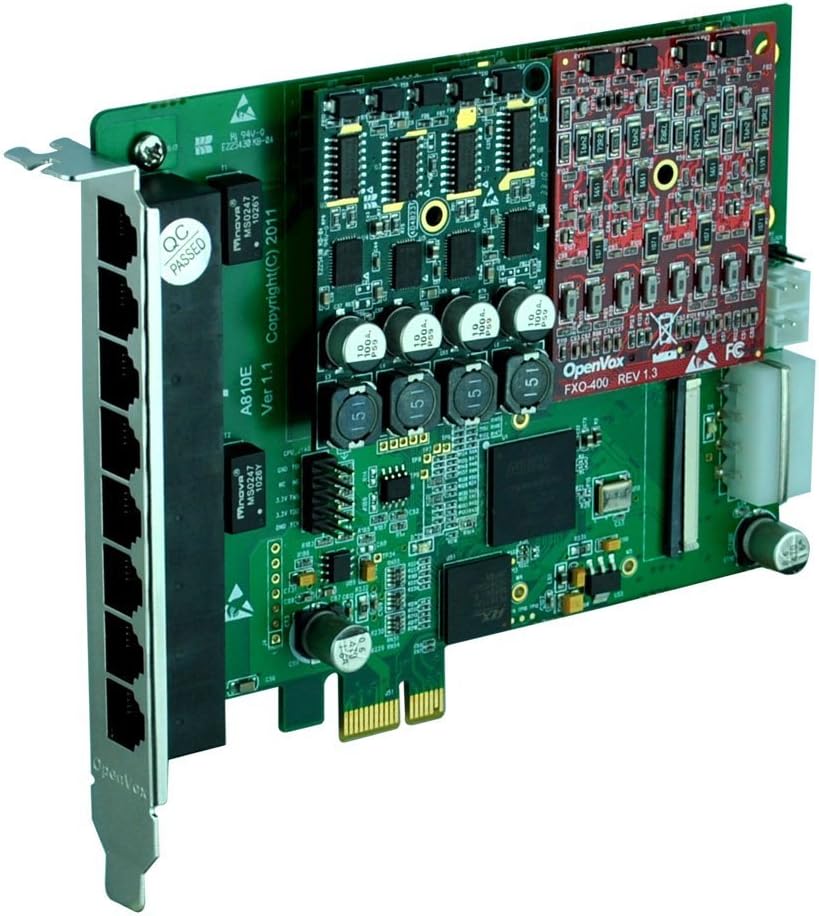

OpenVox A810E02 8-Port Analog PCI-E card base board + 2x FXO400 Modules

Description

OpenVox A810E is a new analog card. It can be used for connecting analog telephones and analog POTS lines through a PC. It delivers the superior voice quality on both FXO and FXS interfaces in all 8 ports.A810E is a new generation analog card with interchangeable quad-FXS and quad-FXO modules. It can eliminate the requirement for separate channel banks or access gateways.The A810E contains 2 module banks. Each bank supports one analog interface. The module banks may be filled with up to 2 quad-FXO or quad-FXS modules enabling the creation of any combination of ports. Scaling of an analog card solution is accomplished by simply adding additional cards.A810E works with Asterisk;, Elastix;, FreeSWITCH;, PBX in a Flash, trixbox;, Yate; and IPPBX/IVR projects as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applicationsTarget ApplicationsChannel Bank Replacement / AlternativeSmall Office Home Office (SOHO) applicationsSmall and Medium Business (SMB) applicationsGateway Termination to analog telephones/linesTechnical SpecificationsUp to 8 ports through a combination of FXS400 and FXO400 modulesFull-length analog cardUp to 2 quad FXS or FXO modulesRJ11 connectorFPGA design, upgradeable firmware onsitePower: 8.21W Minimum, 88.24W MaximumOperation temperature: 0 Deg C to 50 Deg CStorage temperature: -40 Deg C to 125 Deg CSize: 136.3mm*111.2mm*16mmWeight: 85gOperating SystemsLinux (all versions, releases and distributions from 1.0 up)Minimum Hardware Requirement800-Mhz Pentium III128MB RAMAvailable PCI-E x1 SlotCertificationsRoHS CompliantCertificates: FCC, CE and CS-03
