The POE splitter can isolate power and data through cable transmission. Proper matching use with a PoE switch or PSE injector that meets standard IEEE 802.3af, simultaneously provides 12V power and 10/100M data for terminal devices. Does not support PoE, so devices other than PoE can be powered via Ethernet.

Specifications:

1. PoE port: 1 female RJ45 (input)
2. Cable Connector (2): RJ45 Male (Output) and 5.5x2.1mm Male DC Jack (Output)
3. Data rate: 10/100Mbps
4. Max power: 15.4W (IEEE 802.3af), 25.5W (IEEE 802.3at)
5. Voltage Input: 44-57V, Over Voltage Protection
6. Voltage output: 12V
7. Current output: 1-2A
8. Maximum transmission distance: 100 meters
9. Wire length: 105mm
10.Working temperature:0℃~50℃
11.Plug and play, no need to set up

Application:

1. Use with IEEE 802.3af standard power supply (POE switch) and non-POE devices.
2. Not for use with non-POE switches or POE devices.
3. Eliminates the need to put power supply or camera near an outlet.

Quick Q&A help you know our PoE splitter better.

Q:How to check the Poe splitter works?
A: When the Poe splitter is working, the green indicator will always light up, which means the network cable is connected to the PoE splitter Yellow indicator flashes and means data is transmitted.
Q:Why the voltage of the PoE splitter is unstable when testing?
Answer: If the Poe splitter is not connected to your device it means there is no load. Triggers light load protection and voltage instability. If the load is 0.01A, the voltage is stable.
Q: How do I know if it will work with my device?
Answer: isolate power and data through cable transmission, use with PoE switch or PSE injector properly. Provides power and data simultaneously to meet standard IEEE802.3af/at. Device does not support PoE.

Compatible Devices	IP Cameras, VoIP Phones, Network Enabled Devices
Color Name	Black
Batteries Included	No
Batteries Required	No
Brand	Bawofu
Manufacturer	BESTOFFER INTERNATIONAL CO., LTD
Included Components	2 Pack POE Splitter
Connectivity Technology	Ethernet, ieee_802_3_af
Package Dimensions	12.19 x 10.39 x 5.11 cm; 100 g
Item Weight	0.1 Kilograms

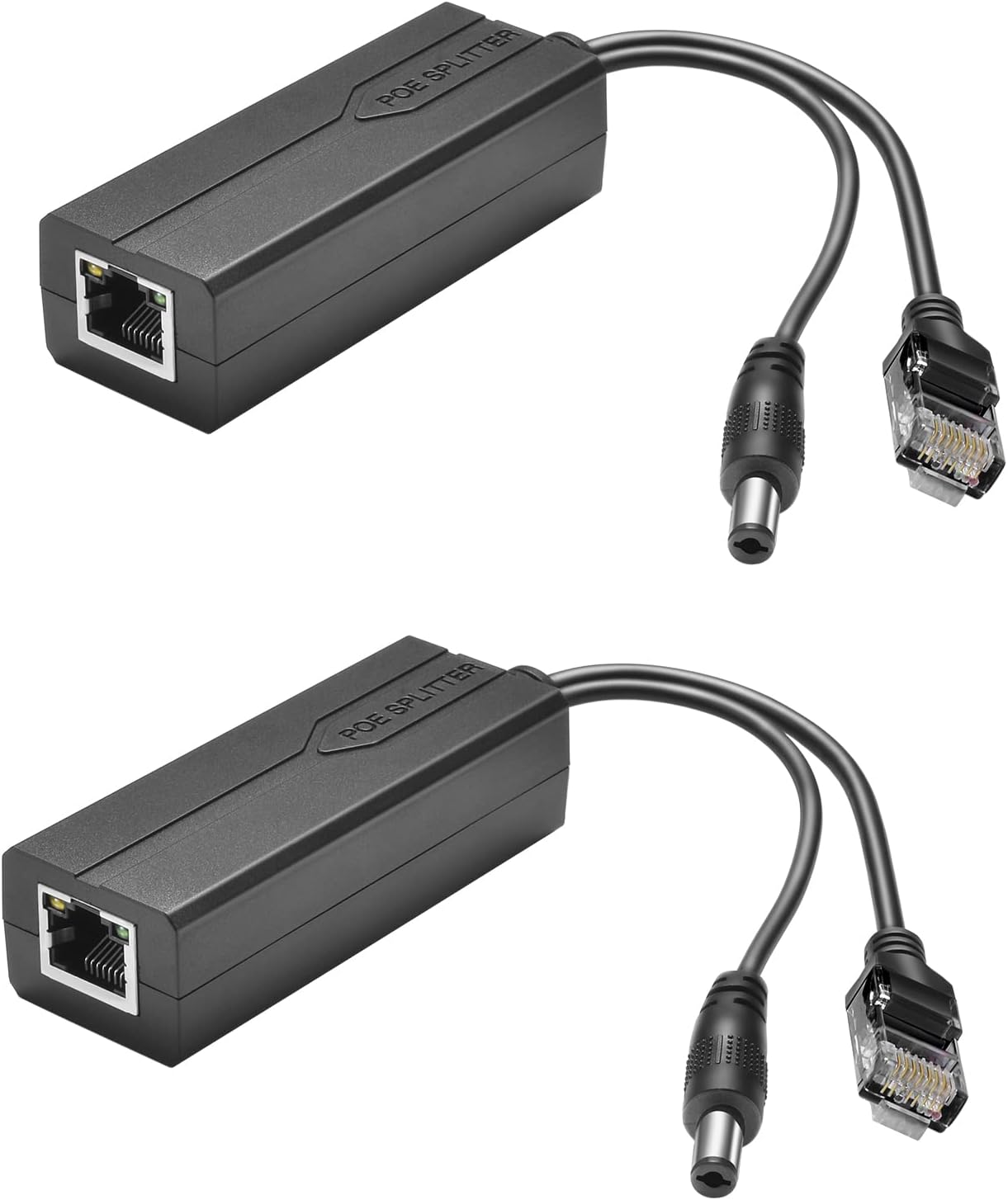

Active PoE Power Over Ethernet Splitter Adapter 48V-12V 5.5x2.1mm DC IEEE 802.3AF/at Compliant 10/100Mbps PoE Splitter 12V Output for Surveillance Camera CCTV VoIP Phones (2-Pack)
