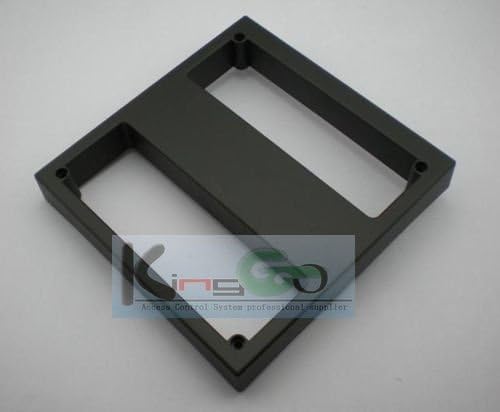

KingGo 1M Long mid Reading Distance Range Wiegand26 Parking System 125Kh EM RFID Reader

Description

Notification: The Reading range is a complex parameter,So called "1 M range" only means the unit works with the special long range card,that is a 2mm thickness credit size card.We provide 10 pcs of such cards as sample.If you need more ,please contact us.Normally,the unit can also work with normal EM cards,normal 2mm thickness card can reach 60 cm range,0.8 mm card can reach 40cm range. Detailed Description: General Brand:FCARD Model:MP100 Specification decode time:<0.2s Communication:Weigand 26/34/Poris RS485 Card type :EM card , EM compatible card ,EM4100\4102, Induction Distance:60~100cm(max to 130cm,meanwhile a special mid range EM card should be necessary) Power supply:DC12V DATA transfer range: Max 80m Currency:<200MA Working Temperature :0~70°C Working Humidity :Less than 80% Warranty Warranty 24 months Physical Dimension (LxWxH mm) 260*260*50 Package : plastic casing &epoxy saturated Color: Black Weight (kg):2.5KG PIN description Pin ,Color, Description 1. RED , DC12V 2. BLACK , GND 3. GREEN ,WG data0 4. WHITE ,WG data1 5. YELLOW ,BUZZER 6. BLUE, LED Some special services: we can provide not only the standard products,but also customized things,for example,color/Logo/Label/DATA format&package etc,if you think it is necessary!
