Wengart electronic thermostat for mounting in standard wall box,Thermostat adopts advanced electronic intelligent control technology,High quality thermostat to control water heating system; LCD with blue backlight to display data clearly, in the dark can easy to read.Through the inside of the thermostat high-precision sensor measure temperature with high accuracy, fast and reliable data reading; Press the button to set kinds of working modes, manual mode/home mode/away from home mode;The housing Material made of Anti-flammable PC and ABS which is durable for use; Mainly used for temperature control in industrial, commercial and family rooms etc;

Specification:

Power Supply Voltage: AC110V±10% 50/60Hz

Ambient temperature display accuracy: ±1℃

Temperature control accuracy: ±1℃

Power Comsumption: <2W

Display: LCD;

Backlight: Blue

Installation Method: Conceal Installation

Temperature Control Range:5-35℃

Maximum Resistive Load: 10A

Inside Sensor: NTC B=3380 10k @25℃

Shell Material:PC+ABS

Levels of Protection: IP20

Package Content: 1 x Thermostat,2 x Screws,1 x Manual

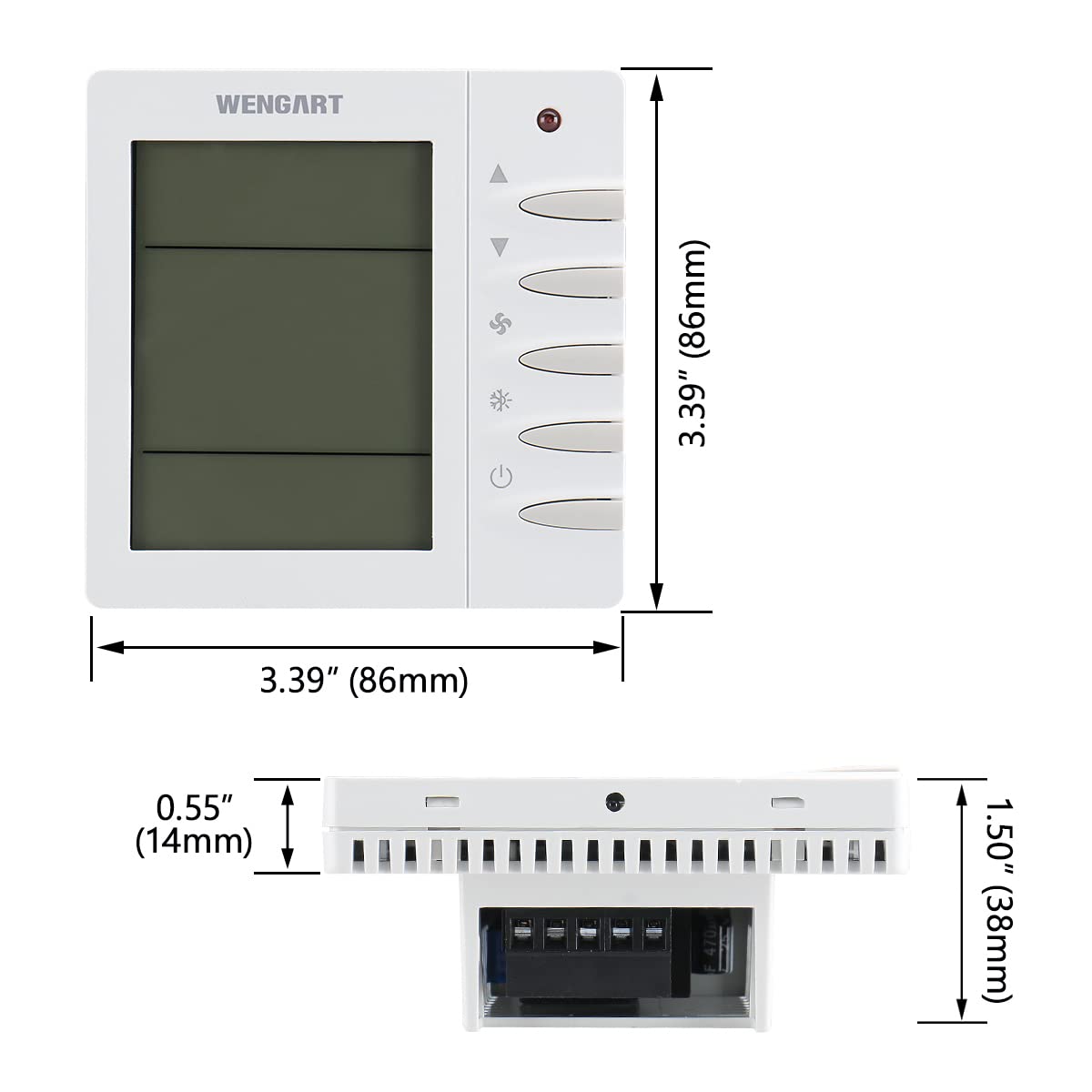

Dimensions: 86 mm x 86 mm x 38mm;

Weight:195g

Notes:

1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!

2. Please allow 1-3cm measuring deviation due to manual measurement.

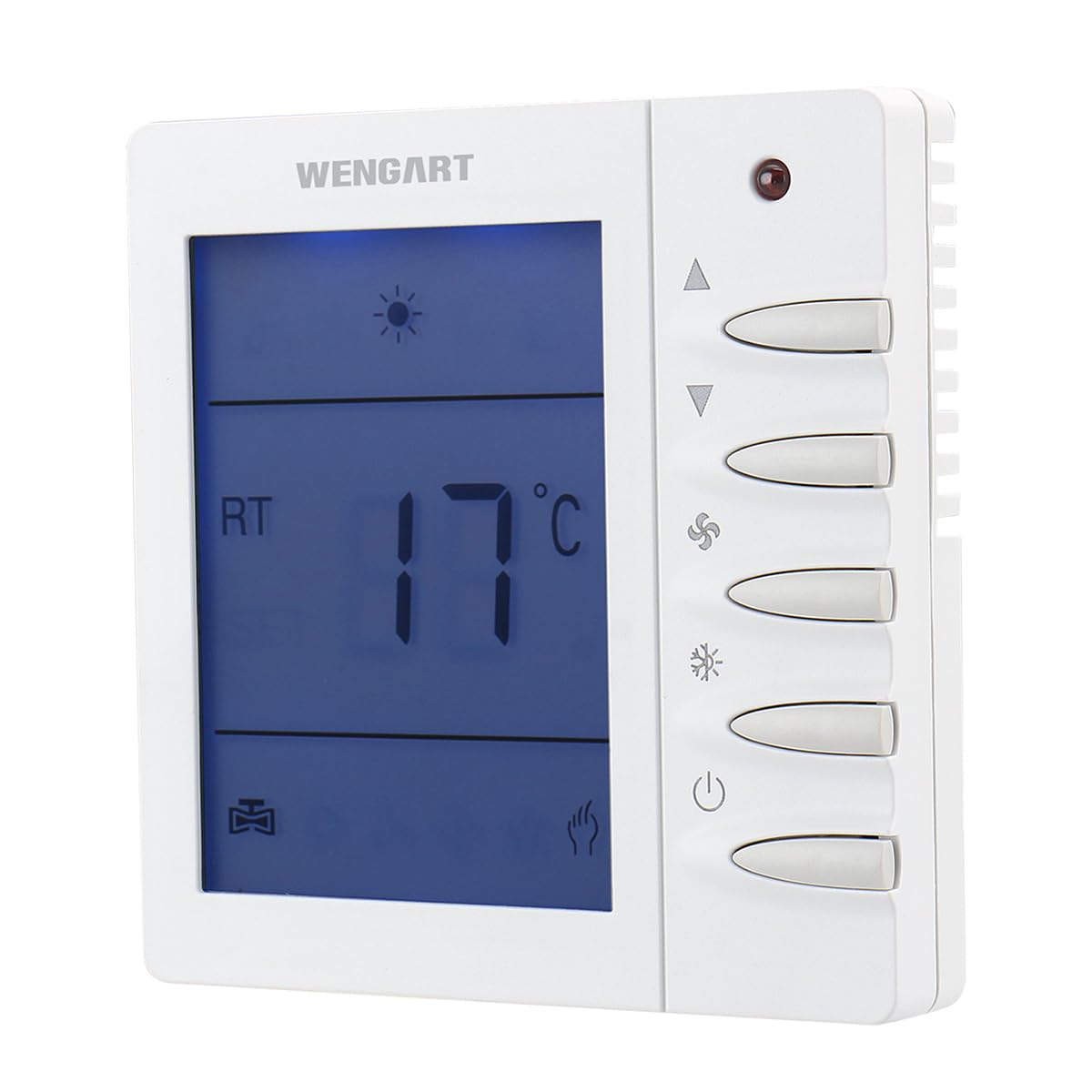

Wengart Non Programmable Thermostat WG702,Heat Only 120v 10A LCD Digital Screen for Home Basic White
