These 2-pin COB strip to wire connectors are solution for 8mm width LED lights strips .

NOTE:
1. Make sure your LED light strip is 8mm width COB strip lights with 2 Soldering Pads. Not work for 5mm 12mm or 10mm width led light strips.

Installation tips:
Strip End:
1. Cut the strip straight perfectly, then fully open the clip.
2. Insert the light strip, align the 2 Soldering Pads of the light-emitting surface of the light with the 2-pins on the connector. Then press down the transparent cover.
Wire End:
1.Cut the desired wire length you need and separated the 2 wires around connection part.
2. Insert wires into the connector guide slot, make sure that positive and negative on the strip light surface are corresponding to the wires.
3.Close the transparent cap with a pliers and press down hard for several times. Ensure the metal joint pierces through the wire insulation as there are so many non-standard wires on the market!
4. reminder: no stripping of the wires. Just be sure polarity nodes are matched up "+" to "+" and "-" to "-".

If you have any problem about installation, pls feel free to contact us.

Package:
10pcs Strip to Wire Connectors (BL-TZ8XB3)

Manufacturer	Alightings
Package Dimensions	15.2 x 8.2 x 1.2 cm; 10 g
ASIN	B09KBPFLZN

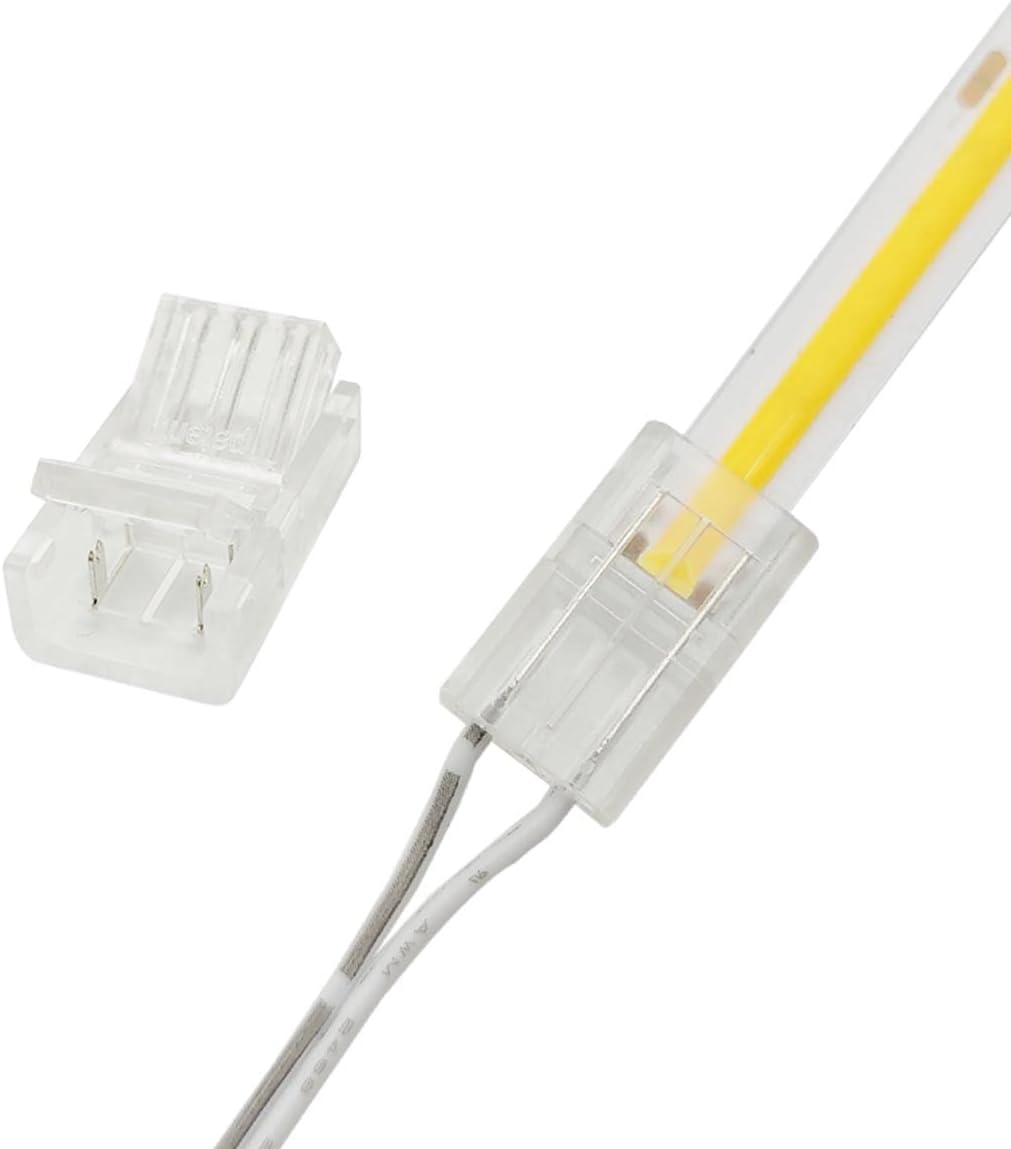

2-Pin COB LED Strip Connectors 8mm Unwired Clips Solderless Adapter Terminal Extension Connection for 12v High Density LED Strip Lights
